imageCLASS LBP741Cx
imageCLASS LBP741Cx
imageCLASS LBP741Cx
Built for today's dynamic workplaces, the imageCLASS LBP741Cx combines high-quality colour printing, robust security, expandable capacity, and energy-efficient technology to deliver dependable performance and long-term value for businesses and enterprises.
Promotion
Key Features
Features
Expandable paper capacity
Expand paper handling capability up to 2,300 sheets by adding optional paper feeders.
Enhanced security
Safeguard print data against tampering by encrypting communication data with the latest protocol, TLS 1.3. Monitor system integrity during startup with Verify System at Startup. Dual network support offers flexibility to guest users while maintaining a secured internal network.
Auto duplex printing
Print on both sides to effectively lower paper usage while reducing carbon footprint and operating costs.
Flexible connectivity
Connect the printer to your office network wirelessly or utilise the printer's built-in Access Point Mode to directly connect to mobile devices without additional router.
Minimal maintenance
Canon's all-in-one toner cartridges provide hassle-free, low-maintenance operation. High yield option Cartridge 081H is available to meet high print volume requirement.

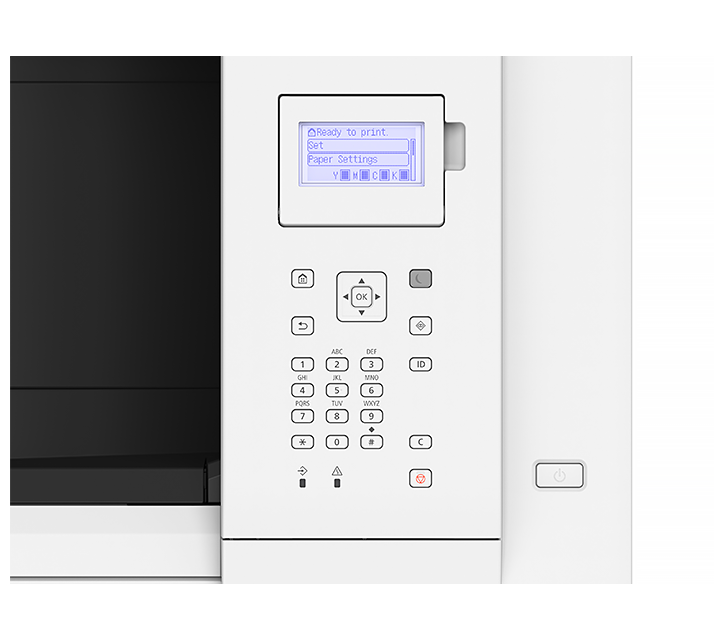

5-line LCD display
Navigate and configure the printer settings easily with the colour touchscreen display panel that comes with a vari-angle mechanism for greater viewing flexibility and clarity.
Support multiple printing environments
In addition to Canon's proprietary UFR II print language, industry-standard PCL6 and Adobe® PostScript® 3™ print languages are available for seamless integration with a wide range of business applications.
Canon PRINT app
With Canon's latest mobile print application, you can print and scan documents, photos, web pages and emails all with just one app. Click here to find out more!
Related pages
Related Consumables
Paper/Specialty Media
500 sheets/ream (5/ctn)
500 sheets/ream (4/ctn)
250 sheets/ream (5/ctn)
250 sheets/ream (4/ctn)
Top Colour Zero Paper
Top Colour Zero papers undergo a special surface treatment during manufacture. The high degree of whiteness and satin gloss gives colour prints a distinctly vivid appearance. Excellent running characteristics allow processing from the paper tray of all colour copiers and laser printers making it ideal for business applications.
500 sheets/ream (5/ctn)
500 sheets/ream (5/ctn)
Standard Paper
Canon Standard is made for high volume and quality printing while keeping the running cost competitive. Ideal paper for your daily high intensity printing needs.
500 sheets/ream (5/ctn)
500 sheets/ream (5/ctn)
Business Paper
High grade white paper for general office use. Good opacity eliminates show-through with double sided copying and printing.
Specifications
| Printing method | Colour laser beam printing |
| Print speed | |
| A4*1 (mono/colour) | 43/43 ppm |
| Letter*1 (mono/colour)
| 45/45 ppm
|
| 2-sided, A4 (mono/colour)
| 43/43 ipm
|
| Print resolution
| 600 × 600 dpi
|
| Print quality with image refinement technology
| 1,200 × 1,200 dpi (equivalent)
|
| First print out time (FPOT) (Approx.)*2
| |
| A4 (mono/colour)
| 6.0 / 6.6 sec
|
| Print language
| UFR II, PCL 6, Adobe® PostScript® 3™
|
| Auto 2-sided print
| Yes
|
| Print margins
| Top/bottom/left/right margin: 5 mm
Top/bottom/left/right margin: 10 mm (envelope) |
| Supported file format for USB direct print
| PDF, TIFF/JPEG, XPS
|
| Mobile solution
| Canon PRINT app, AirPrint®, Mopria® Print Service, IPP Everywhere, Microsoft Universal Print
|
| Other features
| Secure Print, Forced Hold Printing
|
Paper handling
| Input tray capacity (plain paper, 80 g/m²) |
|
| Standard | |
| Cassette | 550 sheets |
| Multi-purpose tray
| 100 sheets
|
| Optional
| |
| Paper feeder
| 550 sheets
|
| Maximum
| 2,300 sheets (standard + 3 paper feeders)
|
| Output tray capacity (plain paper, 80 g/m²) | 400 sheets
|
| Media size
| |
| Cassette/paper feeder*3
| A4, A5, A6, Legal, Letter, Foolscap, Indian Legal Custom (min. 101.6 × 148 mm to max. 216 × 355.6 mm) |
| Multi-purpose tray
| A4, A5, A6, Legal, Letter, Foolscap, Indian Legal, Index Card, Envelope (COM10, Monarch, DL, C5) Custom (min. 76.0 × 127 mm to max. 216 × 355.6 mm) |
| 2-sided printing
| A4, Legal, Letter, Foolscap, Indian Legal Custom (min. 148 × 210.0 mm to max. 216 × 355.6 mm) |
| Media type
| Plain Paper, Recycled Paper, Coated Paper, Colour Paper, Bond Paper
|
| Media weight
| |
| Cassette/paper feeder
| 60 - 200 g/m²
|
| Multi-purpose tray
| 60 - 216 g/m²
|
| 2-sided printing
| 60 - 200 g/m²
|
Connectivity & software
| Standard interface | |
| Wired | USB 2.0, 10Base-T/100Base-TX/1000Base-T |
| Wireless | Wi-Fi 802.11b/g/n (Infrastructure Mode, Access Point, WPS) |
| Network protocol
| |
| Print
| LPD, RAW, IPP, IPPS, FTP, WSD, Mopria, AirPrint, IPP Everywhere, Windows 10, Mobile Print, Universal Print
|
| TCP/IP application services
| mDNS, DHCP, Auto IP (IPv4), DHCPv6 (IPv6)
|
| Management
| SNMPv3 (IPv4, IPv6), HTTP/HTTPS, SNTP
|
| Compatible operating system*4
| Windows®, Windows Server®, macOS®, Linux, Chrome OS™ |
| Available software
| Printer driver
|
Security & management
| Authentication and access control | Department ID |
| Document security | Encrypted Secure Print, Forced Hold Print |
| Network security | |
| Wired
| IP/Mac Address Filtering, HTTPS, SNMPv3, IEEE802.1X, IPsec, TLS 1.3, Dual Network Support
|
| Wireless
| Infrastructure Mode: WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE(AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES) Access Point Mode: WPA2-PSK(AES) Wi-Fi Direct Mode: WPA2-PSK(AES) |
| Device security
| Verify System at Startup, Automatic System Recovery, Runtime Intrusion Detection with Trellix Embedded Control
|
| Device management
| Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting
|
General
| Device memory (RAM) | 2 GB |
| Storage (eMMC) | 32 GB (available space: 15 GB) |
| Display | 5-line LCD (vari-angle) |
| Power requirements
| AC: 220-240 V, 50/60 Hz
|
| Power consumption (Approx.)
| |
| Operation
| 681.7 W (max. 1,760 W)
|
| Standby
| 28.2 W
|
| Sleep
| 1.5 W
|
| Operating environment
| |
| Temperature
| 10-30°C
|
| Humidity
| 20-80% RH (no condensation)
|
| Monthly duty cycle*5
| 135,000 pages
|
| Dimensions (W × D × H) (Approx.)
| 500 × 540 × 420 mm
|
| Weight*6 (Approx.)
| 28.8 kg
|
| Toner cartridge*7
| |
| Standard
| Cartridge 081 BK: 9,000 pages (bundled: 3,800 pages) Cartridge 081 C/M/Y: 6,000 pages (bundled: 3,300 pages) |
| Options | Cartridge 081H BK: 19,300 pages Cartridge 081H C/M/Y: 12,900 pages |
Optional accessories
| Cassette module - AL1 | Paper feeder (550-sheet) |
| Cassette feeding unit - BA1 | Paper feeder with pedestal (550-sheet) |
| Barcode printing kit | Barcode print Kit-D1E |
- Print speed is measured based on internal testing using A4/Letter size paper printed with 100% print ratio to original on one-sided paper.
Internal testing involved continuously printing the same one page of content on plain paper.
Print speed may vary depending on paper type, paper size or paper feeding direction. - First print out time is measured based on internal test procedure and may vary.
When the printer is in the ready state, this is the time from receiving the print instruction from the controller to printing one sheet and finishing paper ejection. - The cassette may not fully close when loaded with paper longer than A4 size.
- The latest drivers for Windows, Windows Server, Mac OS and Linux can be downloaded from the https://asia.canon/en/support website when available.
- Monthly Duty Cycle value provides a means of comparison for product robustness in relation to other Canon laser printer devices, and does not refer to actual maximum image output per month.
- Excluding toner cartridge.
- Toner cartridge yield is in accordance with ISO/IEC 19798.
Actual yield may vary depending on factors such as print content, colour coverage, print settings, printing frequency and operating conditions.
