imagePROGRAF TX-5130 MFP Z36
imagePROGRAF TX-5130 MFP Z36
imagePROGRAF TX-5130 MFP Z36

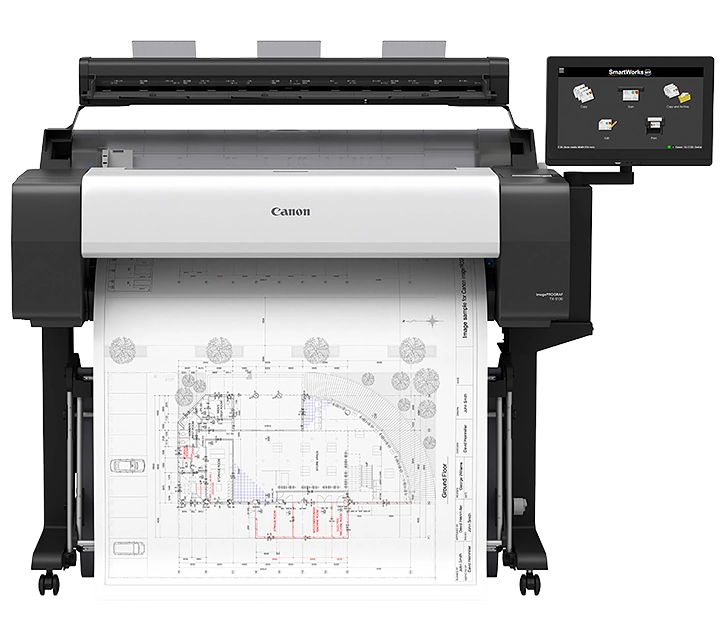

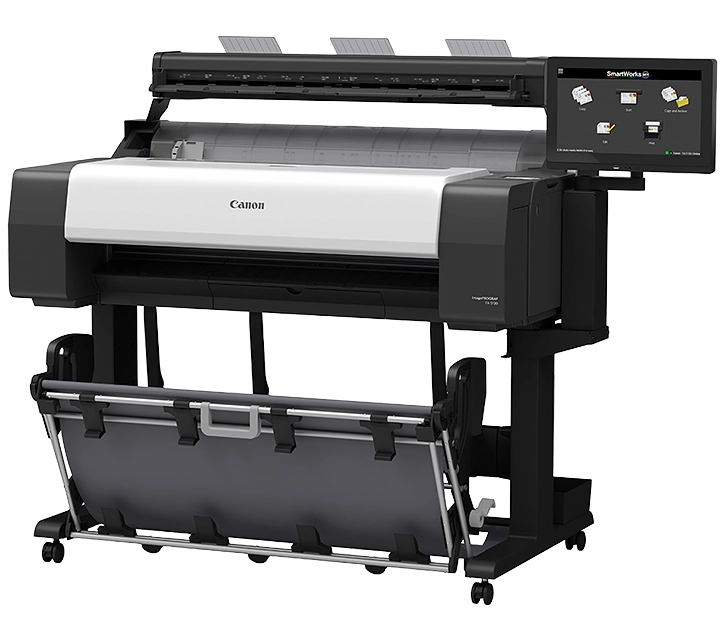

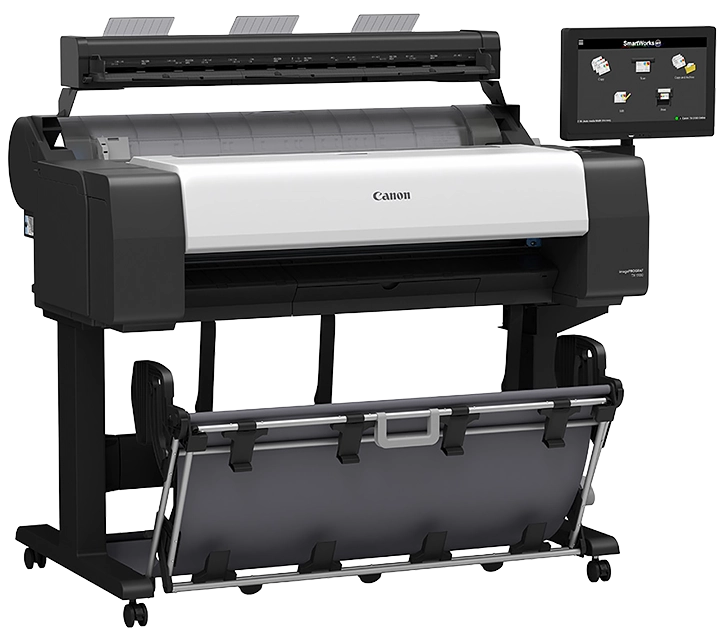

The all-new 36" imagePROGRAF TX-5130 large format printer empowers every print delivery with enhanced scanning operability and printer processing power, delivering high quality CAD drawings, photos and posters. Redefine your workplace productivity with a seamless, swift and reliable print partner. Powered with a robust scanner with wide scanner panel for easy copying, printing & scanning.
Promotion
Key Features
Features
Excellent print quality
High quality fine CAD lines and texts are reproduced and bleeding at edges of thin lines are minimised. Image processing enhances vivid posters on plain paper with darker colours, enhanced colour reproduction, improved text contrast and excellent visibility.

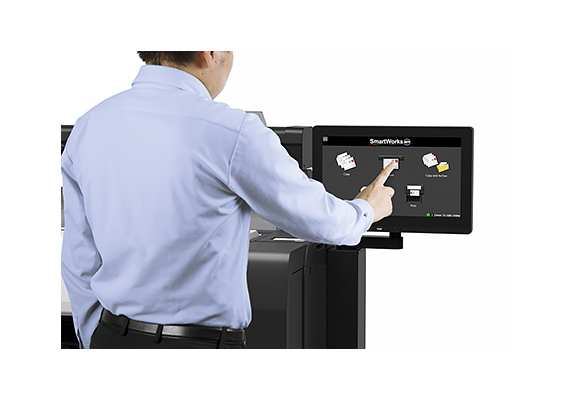

Efficient scanning workflow
The Z36 scanner features a large 15.6-inch display with preview and image editing tools for intuitive copy and scan operations. Easily preview, edit, and adjust scanned images, improving workflow efficiency and productivity.
Full front operation
Print operations will result in greater efficiency. The flat top is designed for convenient daily operation including roll papers loading and consumables replacement. Automatic paper type detection enables users to retrieve paper media information easily.
Technologies
LUCIA TD Ink
The new matte black ink enhances technical drawings with sharper lines and greater clarity. 5-colour LUCIA TD pigment ink is formulated to produce sharp text, rich colours and accurate lines with excellent water resistance, even on plain paper.
FINE Print Head
Equipped with micron-sized nozzles, the fully integrated print head provides superb uniformity of ink density and colours, while multi-pass printing ensures highest print quality is maintained on every print.
L-COA PRO II Image Processing Engine
The L-COA PRO II high-speed imaging processing engine facilitates swift startups from sleep mode as well as continuous printing by providing improved data processing power, improving overall printing efficiency.
Workflow Solutions
PosterArtist
Design vibrant posters for your needs with minimal effort using the PosterArtist application. Check it out here.
Accounting Manager
Track ink and media usage for cost calculation and reporting.
Media Configuration Tool
Easily manage, update and arrange media information in printer's operation panel and printer driver.
Have a question on Canon imagePROGRAF Large Format Printer?
Want to know how it can help in your business?
Related Consumables
Ink/Ribbon/Print Head
|
Product Name
|
Page Yield
|
Product Type
|
Price
|
|
PFI-8120 BK (Black, 130ml)
|
Ink Tank
|
||
|
PFI-8120 C (Cyan, 130ml)
|
Ink Tank
|
||
|
PFI-8120 Y (Yellow, 130ml)
|
Ink Tank
|
||
|
PFI-8121 M (Magenta, 130ml)
|
Ink Tank
|
||
|
PFI-8320 BK (Black, 300ml)
|
Ink Tank
|
||
|
PFI-8320 C (Cyan, 300ml)
|
Ink Tank
|
||
|
PFI-8320 Y (Yellow, 300ml)
|
Ink Tank
|
||
|
PFI-8321 M (Magenta, 300ml)
|
Ink Tank
|
||
|
MC-31
|
Maintenance Cartridge
|
||
|
PF-06
|
Print Head
|
Specifications
Printer
Printer type |
5-colour 36" (914 mm) |
Number of nozzles |
15,360 nozzles
|
Maximum print resolution |
2,400 × 1,200 dpi |
Nozzle pitch |
1,200 dpi (2 lines) |
Line accuracy*1 |
± 0.1% or less |
Ink capacity |
Sales ink: 130 ml / 300 ml (MBK/BK/C/M/Y) |
Ink type | Pigment Ink |
Printer language |
SG Raster (Swift Graphic Raster)
|
Printing solutions |
Direct Print Plus, CPP PRISMAproduce Tech, Canon PRINT (mobile), Canon Print Service (mobile), Free Layout Plus, PosterArtist Windows/Lite/Web |
Management solutions |
Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box |
Standard interfaces (built-in) |
USB A port:
|
Standard memory |
128 GB (physical memory 2 GB) |
| Storage | 256 GB |
Display |
LCD (4.3 inch/10.9 cm TFT colour) |
Print speed*4
CAD drawing (A1 landscape, fast Q5 mode) |
17 sec |
CAD drawing (A0 portrait, fast Q5 mode) |
32 sec |
Poster (A0 portrait, standard mode) |
2 min 30 sec |
Media handling
Media feed and output |
|
Roll paper |
One roll, top load, front output |
Cut sheet |
Top load, front output |
Media width (roll/cut sheet) |
Roll width: 203.2 - 917 mm;
|
Media thickness (roll/cut sheet) |
0.07 - 0.8 mm |
Media core size |
2 inch/3 inch core |
Min. Printable length |
|
Roll paper |
203.2 mm |
Cut sheet |
279.4 mm |
Max. Printable length |
|
Roll paper |
18 m*5 |
Cut sheet |
1,600 mm |
Maximum outer roll diameter |
150 mm or less |
Borderless printing |
Supported for roll paper |
Margins (recommended area) |
|
Roll paper (top, bottom, sides) |
20 mm, 3 mm, 3 mm |
Cut sheet (top, bottom, sides) |
20 mm, 20 mm, 3 mm |
Margins (printable area) |
|
Roll paper (top, bottom, sides) |
3 mm, 3 mm, 3 mm |
Cut sheet (top, bottom, sides) |
3 mm, 20 mm, 3 mm |
Dimensions & weight
Dimensions (W × D × H) |
|
Main unit |
1,285 × 772 × 439 mm (operation panel is not tilt up) |
Main unit + printer stand + basket (SD-35) |
1,285 × 885 × 1,060 mm (operation panel is not tilt up / basket opened) |
Weight *6 |
|
Main unit |
54 kg |
Main unit + printer stand + basket (SD-35) |
68 kg |
Packaged dimensions (W × D × H) |
|
Printer (main unit + stand + basket + pallet) (SD-35) |
1,462 × 1,122 × 799 mm |
Packaged weight *6 |
|
Printer (main unit + stand + basket + pallet) (SD-35) |
116 kg |
Power & operating requirements
Power supply |
AC 100 - 240 V, 50 - 60 Hz |
Power consumption |
|
Printing*7 |
Approx. 69 W |
Sleep mode*7 |
Approx. 1.6 W |
Power off |
0.06 W or less |
Operating environment |
|
Temperature |
15 - 30°C |
Humidity |
10 - 80% RH (no dew condensation) |
Acoustic sound |
|
Acoustic power*8 |
Operation: Approx. 6.2 Bels |
Acoustic pressure*8 |
Operation: Approx. 41 dB |
Accessories
Printer stand (optional) |
- |
2"/3" roll holder |
RH2-35 |
Card reader interface for uniFLOW |
RA-02 |
Consumables
Ink tank |
Magenta: PFI-8121(130 ml) / PFI-8321 (300 ml)
|
Print head |
PF-06 |
| Cutter blade | CT-08 |
Maintenance cartridge |
MC-31 |
Scanner*9
Technology |
Single sensor, full width straight-line CIS with dual LED illumination |
Scan width |
36" (914 mm) |
Min. Scan width |
6" (150 mm) |
Max. Scan length |
|
JPEG/PDF |
8 m |
TIFF |
15.2 m |
Max. Copy speed*10 |
|
200 dpi |
6 ips (colour) / 13 ips (greyscale) |
300 dpi |
4 ips (colour) / 8.6 ips (greyscale) |
600 dpi |
2 ips (colour) / 4.3 ips (greyscale) |
Max. Scan speed*10 |
|
200 dpi |
3 ips (colour) / 13 ips (greyscale) |
300 dpi |
2 ips (colour) / 8.6 ips (greyscale) |
600 dpi |
2 ips (colour) / 4.3 ips (greyscale) |
Optical resolution |
1,200 dpi |
Max. Document thickness*11 |
1 mm |
Document handling |
Front load, rear output*12 |
System controller |
|
Hard disk |
256 GB (Solid State Drive) |
Memory |
16 GB (SODDR 4) |
Display |
15.6" multi-touch colour display |
Software included |
SmartWorks MFP V6 |
Scan format |
PDF, Multipage PDF, JPEG, TIFF, DWF |
Dimensions (W × D × H)*13 |
1,056 × 251 × 156 mm |
Weight |
|
Scanner |
7.8 kg |
System controller |
2.5 kg |
Power consumption (scanner) |
|
Operation*14 |
22.7 W (colour) / 23.3 W (greyscale) |
Sleep mode |
0.2 W |
Standby |
12.4 W |
- User adjustments necessary. Printing environment and media must match those used for the adjustments. CAD paper required: Plain paper, coated paper.
- USB Thumb drive printing is not supported.
- IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP) supported.
- Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Varies according to the OS and application.
- Including roll holder set, excluding print head and ink tanks.
- Using wired LAN.
- Acoustic Power and Pressure are measured using ISO 7779 standard.
- Scanner is manufactured by U.K. – based Global Scanning UK Ltd.
- The scan rate is proportional across the full range of resolutions supported by the scanner. Actual scan times and quoted top speeds will depend on the host performance and are not guaranteed for all media types. Scan times quoted are the maximum for true 200 × 200 dpi image capture.
- Thicker documents must be flexible and the paper return guides removed and may require additional support. Some media should be scanned at reduced speeds. It is not possible to guarantee to be able to scan all media types and sizes.
- To return document to the front, use document return guides.
- Document return guides and paper tray folded.
- Power consumption is measured with scan resolution setting of 200 dpi.
