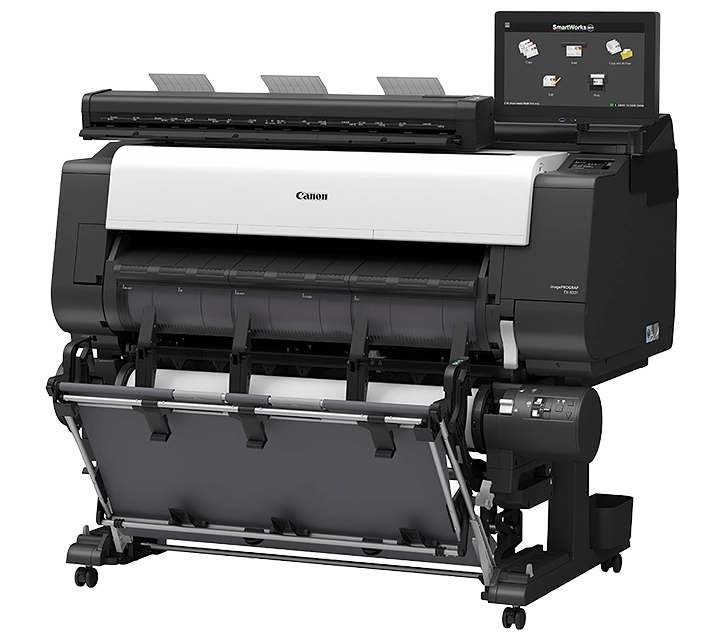

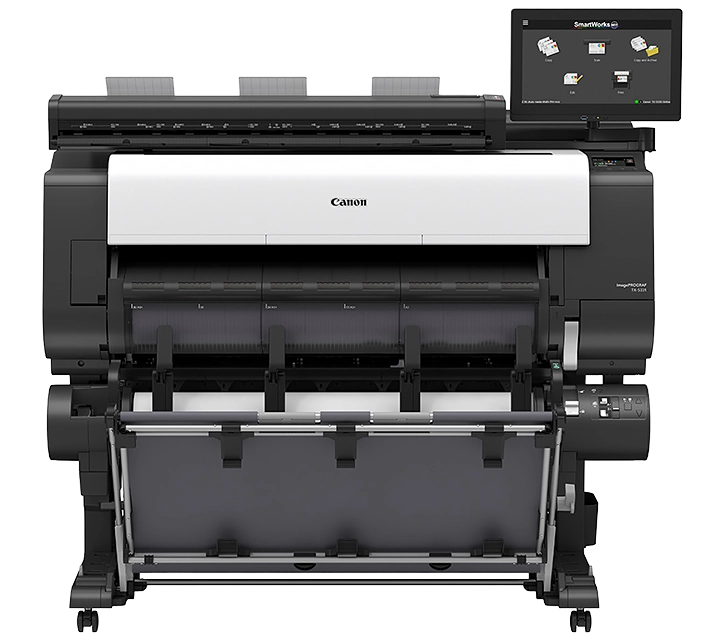

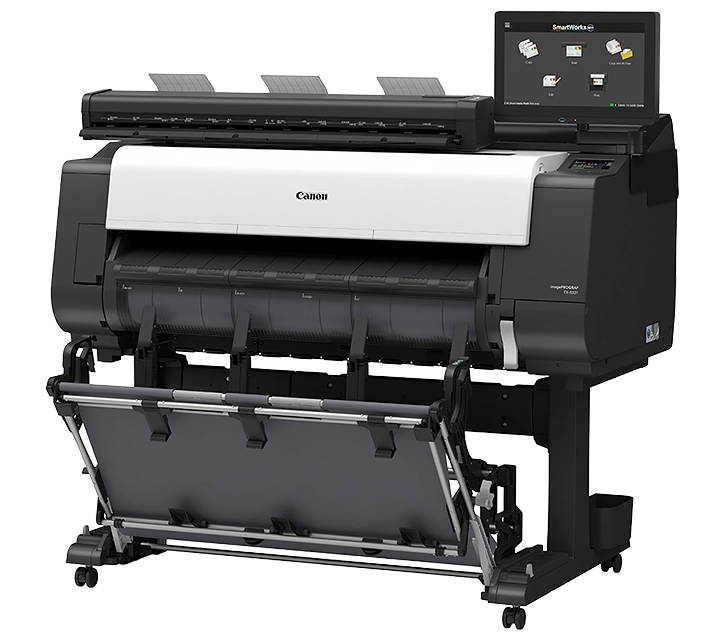

imagePROGRAF TX-5331 MFP Z36
imagePROGRAF TX-5331 MFP Z36
imagePROGRAF TX-5331 MFP Z36
The 36" printer is engineered to deliver fast print speed with amazing print quality even on uncoated paper. Boost your productivity with improved features such as multi-function roll system, auto media type detection, remaining media estimation and custom size borderless printing. Comes with scanner to support copy, print & scanning capabilities.
Promotion
Key Features
Features
High print productivity
The TX series delivers faster throughput during continuous printing with optimised pre-print operations and print spooling, reducing first print time from standby or sleep mode. The advanced Smart Roll Paper Set automatically feeds the roll paper, detects the paper type and estimates the remaining paper quantity for efficient media handling.
Efficient scanning workflow
The Z36 scanner features a large 15.6-inch display with preview and image editing tools for intuitive copy and scan operations. Easily preview, edit, and adjust scanned images, improving workflow efficiency and productivity.
Enhanced output stacking
The new standard stacking basket keeps large-format prints, such as A0 and A1 plain paper, neatly organised for easy collection during continuous printing.
Technologies
LUCIA TD Ink
The new matte black ink enhances technical drawings with sharper lines and greater clarity. 5-colour LUCIA TD pigment ink is formulated to produce sharp text, rich colours and accurate lines with excellent water resistance, even on plain paper.
FINE Print head
Equipped with micron-sized nozzles, the fully integrated print head provides superb uniformity of ink density and colours, while multi-pass printing ensures highest print quality is maintained on every print.
L-COA PRO Image Processing Engine
L-COA PRO imaging processor is capable of processing massive image data, drives high printing speed while maintaining supreme print quality, enabling fast first print out time and continuous printing speed.
Workflow Solutions
The following workflow solutions are designed to help you get the most out of your printer.
Direct Print Plus
Job submission tool which supports batch printing of multiple file types, shortcut printing function and job presets, enabling efficient large format printing workflow.
PosterArtist
Design vibrant posters for your needs with minimal effort using the PosterArtist application. Check it out here.
Accounting Manager
Track ink and media usage for cost calculation and reporting.
Have a question on Canon imagePROGRAF Large Format Printer?
Want to know how it can help in your business?
Accessories
Roll Unit: RU-34 (Optional)
High Capacity Stacker: SS-31 (Optional)
2"/3" Roll Holder: RH2-34
Related Consumables
Ink/Ribbon/Print Head
|
Product Name
|
Page Yield
|
Product Type
|
Price
|
|
PFI-8110 BK (Black, 160ml)
|
Ink Tank
|
||
|
PFI-8110 C (Cyan, 160ml)
|
Ink Tank
|
||
|
PFI-8110 Y (Yellow, 160ml)
|
Ink Tank
|
||
|
PFI-8111 M (Magenta, 160ml)
|
Ink Tank
|
||
|
PFI-8310 BK (Black, 330ml)
|
Ink Tank
|
||
|
PFI-8310 C (Cyan, 330ml)
|
Ink Tank
|
||
|
PFI-8310 Y (Yellow, 330ml)
|
Ink Tank
|
||
|
PFI-8311 M (Magenta, 330ml)
|
Ink Tank
|
||
|
PFI-8710 BK (Black, 700ml)
|
Ink Tank
|
||
|
PFI-8710 C (Cyan, 700ml)
|
Ink Tank
|
||
|
PFI-8710 Y (Yellow, 700ml)
|
Ink Tank
|
||
|
PFI-8711 M (Magenta, 700ml)
|
Ink Tank
|
||
|
MC-30
|
Maintenance Cartridge
|
||
|
PF-06
|
Print Head
|
Specifications
Printer
|
Printer type |
5-colour 36" (914 mm) |
|
Number of nozzles |
15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each） |
|
Maximum print resolution |
2,400 × 1,200 dpi |
|
Nozzle pitch |
1,200 dpi (2 lines) |
|
Line accuracy*1 |
± 0.1% or less |
|
Minimum ink droplet size |
5 pl |
|
Ink capacity |
Sales ink: 160 ml / 330 ml / 700 ml (MBK, BK, C, M, Y) |
|
Ink type |
Pigment ink |
|
Printer language |
SG Raster (Swift Graphic Raster) |
|
Printing solutions |
Direct Print Plus, CPP PRISMAproduce Tech, Canon PRINT (mobile), Canon Print Service (mobile), Free Layout Plus, PosterArtist Windows/Lite/Web |
|
Management solutions |
Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box |
|
Standard interfaces (built-in) |
USB A Port: |
|
Memory |
Standard: 128 GB |
|
Storage |
256 GB (encrypted) |
Print speed*3
|
Plain paper |
|
CAD drawings, A0 |
32 sec [fast (custom Q5)] |
Poster, A0 |
33 sec [fast (custom Q5)] |
Heavyweight coated paper HG |
|
Poster, A0 |
1 min 25 sec [fast] |
Glossy photo paper HG 170 |
|
Poster, A0 |
2 min 53 sec [fast] |
Media handling
Media feed and output |
|
Roll paper (single) |
Front load, front output |
Cut sheet |
Front load, front output*4 |
Media width (roll / cut sheet) |
152.4 - 917 mm |
Media thickness (roll / cut sheet) |
0.07 - 0.8 mm |
Min. Printable length |
|
Roll paper |
101.6 mm*5 |
Cut sheet |
203.2 mm |
Max. Printable length |
|
Roll paper |
18 m*6 |
Cut sheet |
1.6 m |
Maximum outer roll diameter |
170 mm or less |
Borderless printing width |
152.4 - 917 mm |
Margins (recommended area) |
|
Roll paper |
Top: 20 mm, bottom: 3 mm, side: 3 mm |
Cut sheet (others) |
Top: 20 mm, bottom: 20 mm, side: 3 mm |
Margins (printable area) |
|
Roll paper |
Top: 3 mm, bottom: 3 mm, side: 3 mm |
Roll paper (borderless print) |
Top: 0 mm, bottom: 0 mm, side: 0 mm |
Cut sheet (others) |
Top: 3 mm, bottom: 20 mm, side: 3 mm |
Dimensions & weight*7
Dimensions (W × D × H) |
|
Main unit + stand + basket |
1,390 × 1,045 × 1,168 mm (basket opened) |
Main unit + roll unit + stand + stacker |
1,390 × 1,188 × 1,168 mm (stacker opened) |
Roll unit |
1,374 × 336 × 318 mm |
Weight |
|
Main unit + stand + basket |
110 kg |
Main unit + roll unit + stand + basket |
129 kg |
Main unit + roll unit + stand + stacker |
134 kg |
Roll unit |
19 kg |
Packaged dimensions (W × D × H) |
|
Main unit + stand + basket + pallet |
1,598 × 901 × 1,236 mm |
Main unit + stand + pallet |
1,598 × 901 × 1,123 mm |
Stacker |
1,249 × 906 × 291 mm |
Roll unit |
1,524 × 562 × 461 mm |
Packaged weight |
|
Main unit + stand + basket + pallet |
169 kg |
Main unit + stand + pallet |
160 kg |
Basket |
28 kg |
Stacker |
26 kg |
Roll unit |
30 kg |
Power & operating requirements
|
Power supply |
AC 100 - 240 V, 50 - 60 Hz |
Power consumption |
|
Printing |
Approx. 83 W |
Sleep mode |
Approx. 1.7 W |
Power off |
Approx. 0.1 W |
Operating environment |
|
Temperature |
15 - 30°C |
Humidity |
10 - 80% RH (no dew condensation) |
Acoustic sound |
|
Acoustic power*8 |
Operation: Approx. 69 dB |
Acoustic pressure*8 |
Operation: Approx. 51 dB (A) |
Accessories
Roll unit (optional) |
RU-34 |
Stacker (optional) |
SS-31 |
2"/3" Roll holder (optional) |
RH2-34 |
Consumables
Print head |
PF-06 |
Cutter blade |
CT-07 |
Maintenance cartridge |
MC-30 |
Ink tank |
Matte black: PFI-8113 (160 ml) / PFI-8313 (330 ml) / PFI-8713 (700 ml) |
Scanner*9
Technology |
Single sensor, full width straight-line CIS with dual LED illumination |
Scan width |
36" (914 mm) |
Min. Scan width |
6" (150 mm) |
Max. Scan length |
|
JPEG/PDF |
8 m |
TIFF |
15.2 m |
Max. Copy speed*10 |
|
200 dpi |
6 ips (colour) / 13 ips (greyscale) |
300 dpi |
4 ips (colour) / 8.6 ips (greyscale) |
600 dpi |
2 ips (colour) / 4.3 ips (greyscale) |
Max. Scan speed*10 |
|
200 dpi |
3 ips (colour) / 13 ips (greyscale) |
300 dpi |
2 ips (colour) / 8.6 ips (greyscale) |
600 dpi |
2 ips (colour) / 4.3 ips (greyscale) |
Optical resolution |
1,200 dpi |
Max. Document thickness*11 |
1 mm |
Document handling |
Front load, rear output*12 |
System controller |
|
Hard disk |
256 GB (Solid State Drive) |
Memory |
16 GB (SODDR 4) |
Display |
15.6" multi-touch colour display |
Software included |
SmartWorks MFP V6 |
Scan format |
PDF, Multipage PDF, JPEG, TIFF, DWF |
Dimensions (W × D × H)*13 |
1,056 × 251 × 156 mm |
Weight |
|
Scanner |
7.8 kg |
System controller |
2.5 kg |
Power consumption (Scanner) |
|
Operation*14 |
22.7 W (colour) / 23.3 W (greyscale) |
Sleep mode |
0.2 W |
Standby |
12.4 W |
- User adjustments is required.
Printing environment and media must match those used for the adjustments.
Paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only. - Support IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP).
- Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Manual feed using media locking lever.
- For cloth, canvas, tracing paper and translucent matte film media, minimum printable length is 200 mm.
- Varies according to the OS and application.
- Include roll holder set, exclude ink and print head.
- Measured using ISO 7779 standard by using 36 inch plain paper, standard mode and line drawing / text mode.
- Scanner is manufactured by U.K. – based Global Scanning UK Ltd.
- The scan rate is proportional across the full range of resolutions supported by the scanner. Actual scan times and quoted top speeds will depend on the host performance and are not guaranteed for all media types. Scan times quoted are the maximum for true 200 × 200 dpi image capture.
- Thicker documents must be flexible and the paper return guides removed and may require additional support. Some media should be scanned at reduced speeds. It is not possible to guarantee to be able to scan all media types and sizes.
- To return document to the front, use document return guides.
- Document return guides and paper tray folded.
- Power consumption is measured with scan resolution setting of 200 dpi.
