Machine Type

A3 Colour Multifunctional

Core Functions

Print, Copy, Scan, Send, Store and Optional Fax

Processor

Dual Core Processor

Control Panel

10.1" TFT LCD WSVGA Colour Touch panel

Memory

Standard: RAM: 6.0 GB

Storage

Standard: (SSD) 256 GB
Optional: (SSD) 1 TB

Interface Connection

NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T
Optional: Wireless LAN (IEEE 802.11a/b/g/n/ac/ax)

OTHERS
Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1
Optional: Serial Interface, Copy Control Interface

Paper Supply Capacity
(A4, 80 gsm)

Standard: 1,200 sheets
100-sheet Multi-purpose tray x 1
550-sheet Paper cassette x 2

Maximum: 6,350 sheets (with High Capacity Cassette Feeding Unit-F1 + Paper Deck Unit-F2/F3)

Paper Output Capacity
(A4, 80 gsm)

Maximum: 3,450 Sheets (with Staple Finisher-AB3 or Paper Folding/Booklet Finisher-A2 and 3^rd Copy Tray Kit-A1)

Finishing Capabilities^*1

Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, V-fold, C-fold, Z-fold

Supported Media Types

Multi-purpose Tray:
Thin, Plain, Recycled, Eco, Colour, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope

Paper Cassette (Upper/Lower):
Thin, Plain, Recycled, Eco, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope^*2

Supported Media Sizes

Multi-purpose Tray:
Standard Size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom Aize: 98.0 x 139.7 mm to 320.0 x 457.2 mm
Free Size: 98.0 x 139.7 mm to 320.0 x 457.2 mm
Envelopes: COM 10 No.10, Monarch, DL, ISO-C5
Envelope Custom Size: 98.0 x 98.0 mm to 320.0 x 457.2 mm

Upper Cassette:
Standard Size: A4, A5, A5R, A6R, B5
Custom Size: 98.0 x 148.0 mm to 297.0 x 215.9 mm
Envelopes: COM10 No.10, Monarch, DL, ISO-C5

Lower Cassette:
Standard Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom Size: 98.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes: COM10 No.10, Monarch, DL, ISO-C5

Supported Media Weights

Multi-purpose Tray: 52 to 300 gsm

Paper Cassette (Upper): 52 to 256 gsm
Paper Cassette (Lower): 52 to 300 gsm

Duplex: 52 to 256 gsm

Warm-up Time

Quick Startup Mode: 4 seconds or less^*3
From Power On: 6 seconds or less^*4

From Sleep Mode:
7 seconds or less (imageFORCE C5170)
6 seconds or less (imageFORCE C5160/C5150/C5140)

Dimensions (W x D x H)

620 x 722 x 937 mm

Installation Space (W x D)

Basic: 1,050 x 1,162 mm (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open)

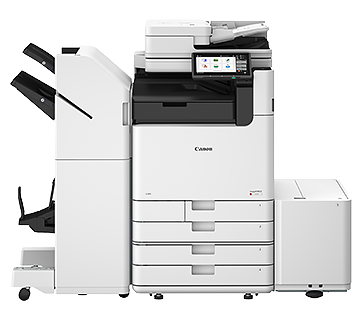

Fully Configured: 2,044 x 1,162 mm (Staple Finisher-AB3/Paper Folding/Booklet Finisher-A2 with the extension tray extended + Paper Folding Unit-L1 + Paper Deck Unit-F2 + Cassette Drawers open)

Weight^*5

Approx. 105 kg

Print Speed (BW and CL)

imageFORCE C5170
Up to 70 ppm (A4, A5^*6, A5R, A6R^*6), up to 36 ppm (A3), up to 42 ppm (A4R)

imageFORCE C5160
Up to 60 ppm (A4, A5^*6, A5R, A6R^*6), up to 32 ppm (A3), up to 36 ppm (A4R)

imageFORCE C5150
Up to 50 ppm (A4, A5^*6, A5R, A6R^*6), up to 27 ppm (A3), up to 30 ppm (A4R)

imageFORCE C5140
Up to 40 ppm (A4, A5^*6, A5R, A6R^*6), up to 20 ppm (A3), up to 24 ppm (A4R)

Print Resolution (dpi)

4,800 x 2,400

Page Description Languages

Standard: UFR II, PCL6/PCL5
Optional: Adobe PostScript 3

Direct Print

Supported file types: PDF, EPS, TIFF/JPEG, and XPS

Printing from Mobile and Cloud

AirPrint, Mopria®, IPP Everywhere, Canon PRINT, uniFLOW Online, Universal Print and Cloud Connector

A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements.

Please contact your sales representative for further information.

OS Standard Printing

Android/Windows® 10/Windows® 11/Chrome OS/macOS (11.2.2 or later) /iOS (15.2 or later)/iPadOS

Fonts

PS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T^*7 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts^*8

Operating System

UFRII: Windows® 10/11/Server2016/Server2019/Server2022/Server2025, macOS (10.14 or later)

PCL: Windows® 10/11/Server2016/Server2019/Server2022/Server2025

PS: Windows® 10/11/Server2016/Server2019/Server2022/Server2025, macOS (10.14 or later)

PPD: Windows® 10/11/Server2016/Server2019/Server2022/Server2025, macOS (10.14 or later)

As of Dec. 2024

Copy Speed (BW and CL)

imageFORCE C5170
Up to 70 ppm (A4, A5^*6, A5R, A6R^*6), up to 36 ppm (A3), up to 42 ppm (A4R)

imageFORCE C5160
Up to 60 ppm (A4, A5^*6, A5R, A6R^*6), up to 32 ppm (A3), up to 36 ppm (A4R)

imageFORCE C5150
Up to 50 ppm (A4, A5^*6, A5R, A6R^*6), up to 27 ppm (A3), up to 30 ppm (A4R)

imageFORCE C5140
Up to 40 ppm (A4, A5^*6, A5R, A6R^*6), up to 20 ppm (A3), up to 24 ppm (A4R)

First-Copy-Out Time (A4, BW/CL)

imageFORCE C5170:
Approx. 2.7/3.7 seconds or less

imageFORCE C5160:
Approx. 2.9/4.2 seconds or less

imageFORCE C5150:
Approx. 3.4/4.9 seconds or less

imageFORCE C5140:
Approx. 4.1/6.1 seconds or less

Copy Resolution (dpi)

600 x 600

Multiple Copies

Up to 999 copies

Copy Density

Automatic or Manual (9 Levels)

Magnification

Variable zoom: 25% to 400% (1% Increments)

Type

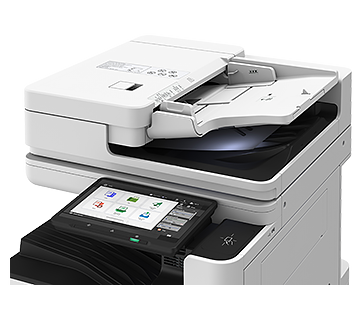

Single-pass Duplexing Automatic Document Feeder^*9
[2-sided to 2-sided (Automatic)]

Document Feeder Paper Capacity
(80 gsm)

Up to 200 Sheets

Document Feeder Acceptable Paper Weight

Document Feeder media weight: 38 to 220 gsm

Note: An acceptable weight of A6R or smaller is 50 to 220 gsm.

Supported Media Sizes

Platen scanning size: Up to 297.0 x 431.8 mm

Document Feeder media size:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R
Custom size: 69.9 x 139.7 mm to 304.8 x 431.8 mm

Scan Speed (ipm, BW/CL, A4)

1-sided Scanning:
135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy)

2-sided Scanning:
270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)

Scan Resolution (dpi)

600 x 600

Pull Scan Specifications

Colour Network ScanGear2 for both TWAIN and WIA

Supported OS: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server2025
As of Dec. 2024

Destination

Standard: E-mail/Internet FAX (SMTP^*10), SMB, FTP, WebDAV, Mail Box
Optional: Super G3 FAX, IP Fax

Address Book

LDAP (2,000)/Local (1,600)/Speed dial (200)

Communication Protocol

File: FTP(TCP/IP), SMB3.1.1 (TCP/IP), WebDAV
E-mail/I-Fax: SMTP, POP3

File Format

TIFF (MMR), JPEG^*11, PDF (Compact, Searchable, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)

Maximum Number of Connection Lines

4

Modem Speed

Super G3: 33.6 kbps
G3: 14.4 kbps

Compression Method

MH, MR, MMR, JBIG

Resolution (dpi)

400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)

Sending / Receiving Size

Sending: A3, A4, A4R, A5^*12, A5R^*12, A6R^*12, B4, B5^*13, B5R^*12

Receiving: A3, A4, A4R, A5, A5R, B4, B5, B5R

FAX Memory

Up to 30,000 pages (2,000 jobs)

Speed Dials

Max. 200

Group Dials / Destinations

Max. 199 dials

Sequential Broadcast

Max. 256 addresses

Memory Backup

Yes

Mail Box (Number supported)

100 User Inboxes
1 Memory RX Inbox
50 Confidential Fax Inboxes
Maximum 10,000 Pages (2,000 jobs) Stored as a guideline

Advanced Box

Communication Protocol: SMB or WebDAV
Supported Client PC: Windows® 10/11
Concurrent Connections (Max.): SMB: 64, WebDAV: 3

Advanced Box Available Disc Space

Standard: 16 GB
(With option: Max. 480 GB)

Authentication & Access Control

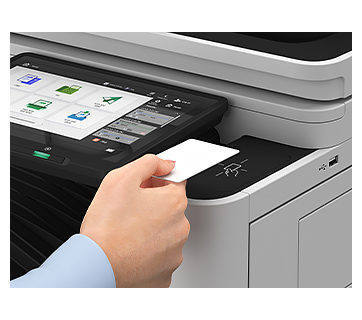

User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online/uniFLOW (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Cloud Connector (PIN Login), Microsoft Entra ID (PIN Login, Card Login), Two-Factor Authentication at LUI/RUI, Access Management System (Access Control)

Document Security

Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print^*14), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS), BOX Security (Mail Box Password Protected, Advanced Space Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Secure Watermark

Network Security

TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), WPA3 (using Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Space in the MFP, Scan and Send-Virus Concerns for E-mail Reception

Device Security

Protecting SSD Data [SSD Data Encryption (FIPS140-3), SSD Lock], Standard SSD Initialize, Initialize (NIST 800-88 PURGE LEVEL), Trusted Platform Module (TPM 2.0), Job Log Conceal Function, Protecting MFP Software Integrity: Verify System at Startup (NIST SP800-193: Protection), Checking MFP Software Integrity & Platform Firmware Resiliency: Automatic System Recovery (NIST SP800-193: Recovery), Runtime Intrusion Detection: Trellix Embedded Control, HCD-PP Common Criteria Certification^*15

Device Management & Auditing

Administrator Password, Digital Certificate And Key Management, SAN certificates, Audit Log, Cooperating with External Security Audit System (SIEM: Security Information and Event Management), Image Data Logging, Security Policy Setting

Operating Environment

Temperature: 10 to 30⁰C
Humidity: 20 to 80 % RH (Relative Humidity)

Power Source

220-240 V, 50/60 Hz, 6 A

Power Consumption

Maximum:
imageFORCE C5170: Approx. 2,000 W
imageFORCE C5160/C5150/C5140: Approx. 1,800 W

Sleep Mode: Approx. 0.5 W^*16

Toner Cartridges

NPG-1001 BK/C/M/Y
NPG-1001L C/M/Y

Toner Yield
(Estimated @5% coverage)

NPG-1001 BK: 63,000 pages
NPG-1001 C/M/Y: 54,500 pages
NPG-1001L C/M/Y: 24,000 pages

Tracking and Reporting

uniFLOW Online

Remote Management Tools

iW Enterprise Management Console
Monitoring Service
Remote Distribution & Management Service

Scanning Software

Colour Network ScanGear 2

Optimisation Tools

Canon Driver Configuration Tool

Platform

MEAP (Multifunctional Embedded Application Platform)

Optional / Standard

Optional on all models

Name

imagePASS-T1 (Embedded)

Print Resolution (dpi)

1,200 x 1,200, 600 x 600

Page Description Language(s)

Adobe PS3, PCL6, Adobe PDF Print Engine (Optional)

Memory

8 GB (4 GB x 2)

Hard Disk Drive

500 GB SATA

System

FS500

Fonts

PS: 138 Fonts
PCL: 113 Fonts

Supported Operating Systems

Windows® 10 32 bit^*17 and 64 bit/Windows® 11/Windows® Server 2016/Windows® Server 2019/Windows® Server 2022/macOS 12, 13, 14

Interface

2 x Ethernet (1000Base-T/100Base-TX/10Base-T), USB 3.0 x 2 (Rear)

Network Protocols

TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port9100, SNTP, 802.1X, DHCP, DNS, NTP)

Direct Print

PDF1.7, EPS, TIFF6, JDF1.4/JMF (Optional)

VDP

FreeForm v1, v2.1

Fiery Print Controller Standard Features

Fiery Command WorkStation 7/Paper Catalog/Fiery Spot-On/Fiery Remote Scan

Fiery Print Controller Options

Fiery Impose/Fiery Compose/Fiery Impose and Compose/Fiery Automation package/Fiery Colour Right package/Fiery JobExpert and PDF Processing Kit

HW Platform

E500

Base OS

Debian of Linux

Power Source

AC 100-240 V, 50/60 Hz; 1.5 A (100 V) - 1.0 A (240 V)

Maximum Power Consumption

55 W

Cassette Feeding Unit-AYl

Paper Capacity: 2 x 550 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Eco, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead
Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom Size: 98.0 x 148.0 mm to 304.8 x 457.2 mm
Paper Weight: 52 to 300 gsm

High Capacity Cassette Feeding Unit-F1

Paper Capacity: 2,450 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Eco, Colour, Heavy, Bond, Pre-punched, Letterhead
Paper Size: A4
Paper Weight: 52 to 300 gsm

Paper Deck Unit-F2/F3

(Requires Cassette Feeding Unit-AY1 or High Capacity Cassette Feeding Unit-F1)

Paper Capacity: 2,700 sheets (80 gsm)
Paper Type: Thin, Plain, Colour, Recycled, Heavy, Pre-punched
Paper Size: A4, B5
Paper Weight: 52 to 256 gsm

1^st Copy Tray Kit-B1 (Standard)

Capacity (with 80 gsm paper):
A4, A5, A5R, A6R, B5: 250 sheets
SRA3, A3, A4R, B4, B5R: 100 sheets

Paper Weight: 52 to 300 gsm

Inner 2way Tray-M1

(Requires 1^st Copy Tray Kit-B1)

Tray Capacity (with 80 gsm paper)
Upper Tray:
A4, A5, A5R, A6R, B5: 100 sheets
SRA3, A3, A4R, B4, B5R: 50 sheets

Paper Weight: 52 to 300 gsm

3^rd Copy Tray Kit-A1

Capacity (with 80 gsm paper):
A4, A5R, B5: 100 sheets
A3, A4R, B4, B5R: 75 sheets

Paper Weight: 52 to 300 gsm

Inner Finisher-N1

Tray Capacity (with 80 gsm paper):

Upper Tray:
SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: Approx. 45 sheets

Lower Tray:
A4, A5, A5R, B5: Approx. 500 sheets
A3, A4R, B4, B5R: 250 sheets
A6R: 30 sheets
SRA3, Envelope: 10 sheets

Paper Weight: 52 to 300 gsm

Staple Position: Corner, Double
Staple Capacity (52 to 90 gsm):
A4, B5: 50 sheets
A4R: 40 sheets
A3, B4: 30 sheets

Eco Staple:
A3, A4, B4, B5:
10 sheets (52 to 64 gsm)
8 sheets (65 to 81.4 gsm)
6 sheets (82 to 105 gsm)

Staple On Demand: Approx. 40 sheets (80 gsm)

Staple Finisher-AB3

(Requires Buffer Pass Unit-R1)

Tray Capacity (with 80 gsm paper):

Upper Tray:
A4, A5, A5R, A6R, B5: Approx. 250 sheets
SRA3, A3, A4R, B4, B5R: Approx. 125 sheets

Lower Tray:
A4, A5, A5R, B5: 3,000 sheets
SRA3, A3, A4R, B4, B5R: 1,500 sheets
A3, B4 (Z-fold^*19): 30 sheets
A4R (Z-fold^*19): 10 sheets
A6R: 250 sheets
Envelopes: Monarch: 30 sheets, COM10 No.10, DL, ISO-C5: 100 sheets

Paper Weight:
Upper Tray: 52 to 256 gsm
Lower Tray: 52 to 300 gsm

Staple Position: Corner, Double
Staple Capacity: (52 to 90 gsm)
A4, B5: 65 sheets
A4R: 40 sheets
A3, B4: 30 sheets

Eco Staple:
A3, A4:
10 sheets (52 to 64 gsm)
8 sheets (65 to 81.4 gsm)
6 sheets (82 to 105 gsm)

Staple On Demand: 65 sheets (52 to 90 gsm)

Paper Folding/Booklet Finisher-A2

(Requires Buffer Pass Unit-R1)
(Includes the above Staple Finisher-AB3 basic staple specifications)

Saddle Stitch/V-fold Paper Size: A3, A4R, B4
C-fold Paper Size: A3, A4R, B4
Saddle Stitch Staple Capacity: 20 sheets x 10 sets (52 to 81.4 gsm) (including 1 cover sheet 52 to 256 gsm)
V-fold Capacity: Up to 5 sheets (52 to 105 gsm)
C-fold Capacity:
A4R: Up to 6 sheets (52 to 90 gsm), up to 5 sheets (91 to 128 gsm)
A3, B4: Up to 5 sheets (64 to 128 gsm)

Paper Folding Unit-L1

(Requires Staple Finisher-AB3 or Paper Folding/Booklet Finisher-A2)

Paper Size: A3, A4R, B4

Inner 2/3 Hole Puncher-D1

(Requires the Inner Finisher-N1)

Two or Three Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5, B4, B5, B5R
Three holes: A3, A4, B4, B5

Inner 2/4 Hole Puncher-D1

(Requires the Inner Finisher-N1)

Two or Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5, B4, B5, B5R
Four holes: A3, A4

2/3 Hole Puncher Unit-A1

(Requires either the Staple Finisher-AB3 or Paper Folding/Booklet Finisher-A2)

Two or Three Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5, B4, B5, B5R
Four holes: A3, A4, B4, B5

2/4 Hole Puncher Unit-A1

(Requires either the Staple Finisher-AB3 or Paper Folding/Booklet Finisher-A2)

Two or Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5, B4, B5, B5R
Four holes: A3, A4
