Name of components and information displayed on the screen (PowerShot ELPH 360 HS / IXUS 285 HS)
สารละลาย
PowerShot ELPH 360 HS / IXUS 285 HS

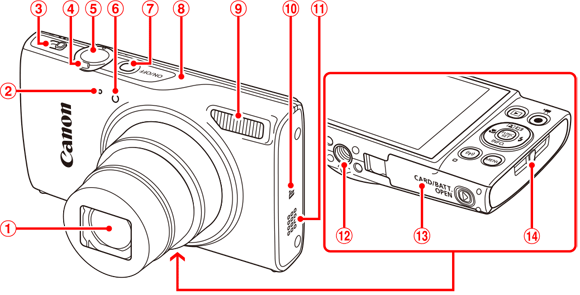

 | Lens |  | Wi-Fi antenna area |
 | Microphone |  | Flash |
 | Mode switch |  |  (N-Mark) **Used with NFC features |
 | Zoom lever Shooting :  (telephoto) /  (wide angle)Playback :  (magnify) /  (index) |  | Speaker |
 | Shutter button |  | Tripod socket |
 | Lamp |  | Memory card/battery cover |
 | Power button |  | Strap mount |

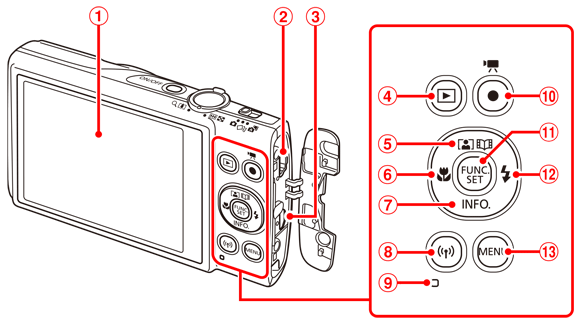

| Screen (monitor) | |  (Wi-Fi) button |
| AV OUT (Audio/video output) / DIGITAL terminal | | Indicator |
| HDMI™ terminal | | Movie button |
|  (Playback) button | | FUNC. (Function) / SET button |
|  (Auto Zoom) /  (Story Highlights) / Up button | |  (Flash) / Right button |
|  (Macro) / Left button | |  button |
|  (Information) / Down button |

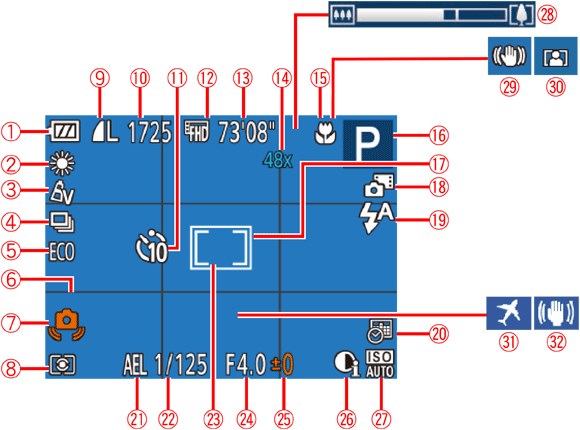

| Battery level |  | AF frame |
| White balance |  | Hybrid Auto mode |
| My Colors |  | Flash mode |
| Drive mode |  | Date stamp |
| Eco mode |  | AE lock |
| Grid lines |  | Shutter speed |
| Camera shake warning |  | Spot AE point frame |
| Metering method |  | Aperture value |
| Still image compression, Recording pixel setting |  | Exposure compensation level |
| Recordable shots* *In [  ] mode, indicates the number of shots available. |  | i-Contrast |
| Self-timer |  | ISO speed |
| Movie quality |  | Zoom bar |
| Remaining time |  | IS mode icon |
| Zoom magnification, Digital tele-converter |  | Auto Zoom |
 | Focus range |  | Time zone |
 | Shooting mode, Scene icon |  | Image stabilization |
NOTE
- Some information may not be displayed when viewing images on a TV.

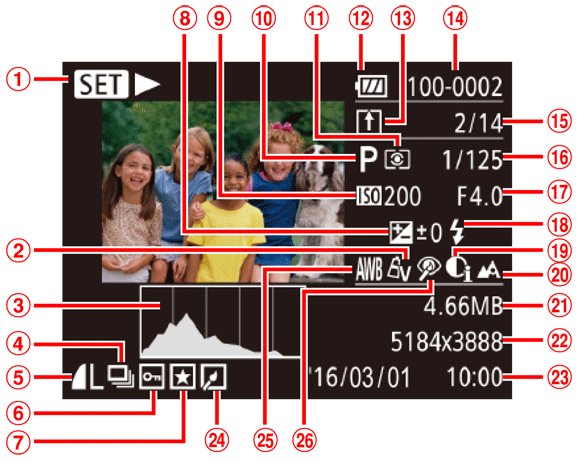

| Movie playback, Linked digest movie playback, Group playback | | Folder number - File number |
| My Colors, Creative Shot effect | | Current image no. / Total no. of images |
| Histogram | | Shutter speed (still images), Image quality / Frame rate (movies) |
| Group playback, Digest movies | | Aperture value |
| Compression (image quality) / Recording pixel setting, MP4 (movies) | | Flash |
| Protection | | i-Contrast |
| Favorites | | Focus range |
| Exposure compensation level | | File size |
| ISO speed, Playback speed | | Still images: Recording pixel setting Movies: Playback time |
| Shooting mode | | Shooting date/time |
| Metering method | | Image editing |
| Battery level | | White balance |
| Image Sync | | Red-eye correction |
