EOS C80
Lightweight Full-Frame Cinema Camera with RF Mount
The EOS C80 is an ultra-portable, palm-sized powerhouse designed for effortless mobility while delivering exceptional performance. At the heart of it is a 6K full-frame back-illuminated stacked CMOS sensor to provide stunning resolution and lightning-fast signal processing for professional-grade results.
With expanded SDI and Ethernet terminals, this camera is perfectly equipped to meet the rigorous demands of live and virtual production environments.
- Highly Portable, Compact & Lightweight with RF mount
- 6K Full-Frame Back-Illuminated Stacked CMOS Sensor
- 6K 30p RAW and 4K 120p Recording
- Wide Variety of Interface to Support Virtual Production
6K Full-Frame Back-Illuminated Stacked CMOS Sensor
RF Mount
Operability
Improvement
Full Array of
Interfaces
Compact &
Lightweight
Virtual & Live
Production
Beautiful 6K 30P Movies
The full-frame sensor offers a shallow depth of field and large bokeh for enhanced creative expression. At the same time, faster signal readout minimises rolling shutter distortion during video recording. Coupled with the DIGIC DV 7 processor, it supports high-speed image processing, enabling 6K 30P internal RAW recording and 4K 4:2:2 10-bit recording through 6K oversampling.

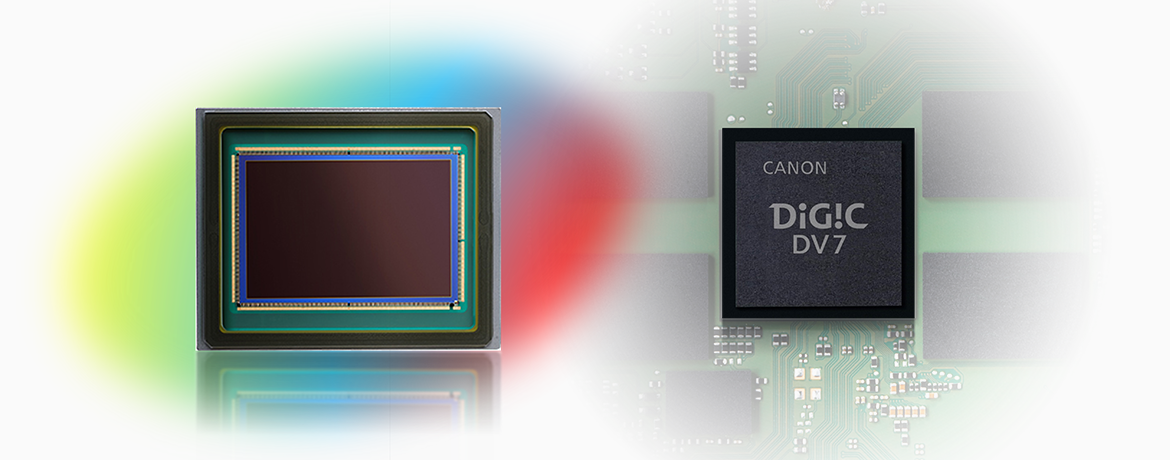

6K Back-Illuminated Stacked Full-Frame CMOS Sensor
- Enhanced 4K image quality with 6K oversampling1
- Supports Dual Pixel CMOS AF II
- Low noise & wide dynamic range of 16 stops
- Automatic base ISO changing with 3 base ISO (800 / 3200 / 12800)2
1 Recording is possible at up to 6K 30P (RAW) and 4K 120P. When 4K 120P is selected in Super 35mm mode, the angle of view is cropped at approx. 6%.
2 With Canon Log 2/3 and RAW recording at HDMI RAW setting
Full Array of Interfaces
A Diverse Array of Interfaces for Professional Excellence
The newly integrated SDI terminal allows for simultaneous output alongside the HDMI terminal, providing seamless connectivity with a variety of external devices. Additionally, with the camera's built-in Wi-Fi and Ethernet terminal, users can effortlessly operate the camera remotely and monitor its status from a smartphone or computer, unlocking new levels of flexibility and control.
Two 3-pin Mini XLR Input
Professional microphones can be attached to the EOS C80's two mini XLR terminals with 48-volt phantom power to record high-definition audio. A 3.5mm microphone input is also available for connecting different microphones.
Audio Control Dials
The EOS C80 features dedicated dials on the back of the camera body for precise audio control, allowing for easy and intuitive adjustment of recording levels for channels 1 and 2.
RF Mount
The RF mount's compact and lightweight nature is attributed to its short back focus. The utilisation of RF lenses delivers highly expressive and high-quality imaging. The RF mount's high-speed communication capabilities allow for better-coordinated control of the camera and lens IS to produce powerful image stabilisation.
PL and EF lenses can be fully utilised with an adapter:
- Mount Adapter PL-RF
- Mount Adapter EF-EOS R
*mount adapters are optional accessories
Mount Adapter PL-RF
Mount Adapter EF-EOS R 0.71x

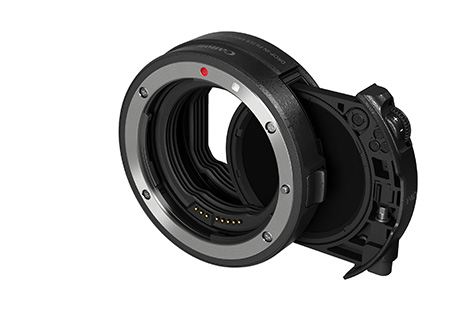

Drop-in Filter Mount Adapter EF-EOS R
with Drop-in Variable Neutral Density Filter

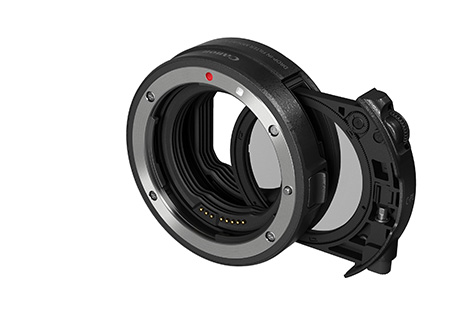

Drop-in Filter Mount Adapter EF-EOS R
with Drop-in Circular Polarizing Filter
Mount Adapter EF-EOS R
Control Ring Mount Adapter EF-EOS R
Extender RF 2x
Extender RF 1.4x
Highly Mobile, Compact & Lightweight Design
The EOS C80's compact and agile body is perfect for capturing dynamic shots, whether handheld, on a gimbal, or in motion. Its integrated grip offers stability and comfort, even for larger hands, ensuring precise control during extended shoots. This design empowers you to focus on your creative vision with confidence, no matter the scenario.
Spectacular 4K Image Quality with 6K Oversampling
Achieve crystal clear high definition 4K video with up to 6k readout oversampling*.
4:2:2 10-bit high-resolution recording is enabled through oversampling of the full-frame 6K sensor during 4K/2K movie recording.
*When using XF-AVC, XF-HEVC S, XF-AVC S recording, full-frame sensor mode, and frame rate of 60P/50P or lower.
Dual Pixel CMOS AF II
High-performance subject detection is made possible by the deep learning-based EOS iTR 1 AF X algorithm, which works in tandem with the incredible speed, accuracy, and field of view of Dual Pixel CMOS AF II. The focusing area is approximately 100% x 100%.
The EOS C80 can now detect human body2 and animal3 through the introduction of EOS iTR AF X.
1 Intelligent tracking and recognition.
2 When eyes, face, or head are hidden during AF tracking, the body is detected and tracking continues.
3 Detection of animals other than dogs or cats is not supported.
High Frame Rates
Get cinematic slow-mo shots of up to 7.5x with with the EOS C80's high quality 4:2:2 10-bit - 2K 180p and 2K/4K 120p*. It also offers continuous autofocus up to 2K/4K 120P, ensuring sharp focus during high-speed action, making it ideal for professionals in dynamic environments.
* When 4K 120P is selected in Super 35mm mode, the angle of view is cropped at approx. 6%.
Three Base ISO
The camera's Auto Selection feature changes between the three base ISO levels depending on the scene, selecting one with a higher S/N ratio while maintaining dynamic range. Users also can manually choose from the three base ISO* levels: ISO 400, ISO 1600 and ISO 6400 .
Using different base ISOs according to scene brightness (ISO sensitivity) helps reduce noise in videography.
*When using C-Log 2/3 & RAW: 800 / 3200 / 12800
Anamorphic Lens Support
When output to an LCD monitor or with MON. / SDI / HDMI, images are cropped to an angle of view of 2.39:1 after desqueezing.
The magnification ratio can be selected from OFF, 2x, 1.8x, or 1.3x in the menu (when shooting at 4K 60/50P, the desqueezing display is at 2K for MON. / SDI / HDMI). Data recorded for metadata can be configured separately from the magnification ratio.
Simultaneous Recording
The EOS C80 comes with dual memory card slots that supports UHS-II SD Cards that are 3x faster than UHS-I SD Cards. This enables:
- Double recording
- Simultaneous recording of proxy files
- Simultaneous recording of different formats
- Relay recording
Logs that Expands Visual Expression
Canon Log 2
The Canon Log 2 retains details in medium-to-dark areas with film-like characteristics and provides linear output across a broader range. It enables precise exposure control with minimal colour shifts and preserves detail during post-editing, making it ideal for production environments based on Cineon-Log, such as film production.
Canon Log 3
Well-known for being user-friendly, the Canon Log 3 enables users to create videos with as little as basic tone adjustments through grading. Tightening the dark areas reduces the noise in the dark areas without compromising a broad dynamic range.
Combination IS
The EOS C80's In-body Digital IS and the In-lens Optical IS work together through coordinated control to deliver powerful image stabilisation. This is made possible by the RF mount, which allows high-speed communication between the lens and the camera.
| Format | Codec | Intra-frame / Long GOP | Sampling | Resolution | Max. Bit Rate | Slow & Fast Motion Max. Frame Rate |
 |
- | - | 12bit | 6000x3164 |
639Mbps (29.97P LT) |
30P |
| 4368x2304 | 678Mbps (59.94P LT) 611Mbps (50.00P LT) |
60P |
| Format | Codec | Intra-frame / Long GOP | Sampling | Resolution | Max. Bit Rate | Slow & Fast Motion Max. Frame Rate |
 |
H.264/AVC | Intra-frame | 422 10bit |
4096 x 2160 3840 x 2160 |
600Mbps (59.94P) 500Mbps (50.00P) |
60P |
| 2048 x 1080 1920 x 1080 |
300Mbps (59.94P) 250Mbps (50.00P) |
120P | ||||
| 1920 x 1080 | 150Mbps (59.94i) 125Mbps (50.00i) |
- | ||||
| Long GOP | 422 10bit |
4096 x 2160 3840 x 2160 |
250Mbps (59.94P/50.00P) 150Mbps (29.97P/25.00P/24.00P/23.98P) |
120P | ||
| 2048 x 1080 1920 x 1080 |
50Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) | 180P | ||||
| 1920 x 1080 | 50Mbps (59.94i/50.00i) | - | ||||
| 420 8bit (Proxy) |
2048 x 1080 | 35Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) | 60P | |||
| 1920 x 1080 | 35Mbps (59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/24.00P/23.98P) | - |
| Format | Codec | Intra-frame / Long GOP | Sampling | Resolution | Max. Bit Rate | Slow & Fast Motion Max. Frame Rate |
 |
H.265 / HEVC | Long GOP | 422 10bit |
4096 x 2160 3840 x 2160 |
225Mbps (59.94P/50.00P) 135Mbps (29.97P/25.00P/24.00P/23.98P) |
120P |
| 2048 x 1080 1920 x 1080 |
50Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) | 180P | ||||
| 420 10bit |
4096 x 2160 3840 x 2160 |
150Mbps (59.94P/50.00P) 100Mbps (29.97P/25.00P/24.00P/23.98P) |
120P | |||
| 2048 x 1080 1920 x 1080 |
35Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) | 180P | ||||
| 420 10bit (Proxy) |
2048 x 1080 | 16Mbps/9Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) | 60P | |||
| 1920 x 1080 | 16Mbps/9Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) | - | ||||
| 420 8bit (Proxy) |
1280 x 720 | 6Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) | - |
| Format | Codec | Intra-frame / Long GOP | Sampling | Resolution | Max. Bit Rate | Slow & Fast Motion Max. Frame Rate |
 |
H.264 / AVC | Intra- frame | 422 10bit |
4096 x 2160 3840 x 2160 |
600Mbps (59.94P) 500Mbps (50.00P) |
60P |
| 2048 x 1080 1920 x 1080 |
300Mbps (59.94P) 250Mbps (50.00P) |
120P | ||||
| Long GOP | 422 10bit |
4096 x 2160 3840 x 2160 |
250Mpbs (59.94P/50.00P) 150Mbps (29.97P/25.00P/24.00P/23.98P) |
120P | ||
| 2048 x 1080 1920 x 1080 |
50Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) | 180P | ||||
| 420 8bit |
4096 x 2160 3840 x 2160 |
150Mpbs (59.94P/50.00P) 100Mbps (29.97P/25.00P/24.00P/23.98P) |
120P | |||
| 2048 x 1080 1920 x 1080 |
35Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) | 180P | ||||
| 420 8bit (Proxy) |
2048 x 1080 | 16Mbps/9Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) | 60P | |||
| 1920 x 1080 | 16Mbps/9Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) | - | ||||
| 1280 x 720 | 6Mbps (59.94P/50.00P/29.97P/25.00P/24.00P/23.98P) | - |
Improved Vertical UI Operability*
The camera offers a touch-based menu for recording features and LCD brightness settings, providing the same feel as standard horizontal shooting. This feature is particularly useful for producing video for smart devices or digital signage. The camera also supports menu settings and LCD brightness adjustments in vertical shooting, providing an easy-to-read layout similar to standard horizontal shooting. Various settings and controls can be operated with touch.
*compared with EOS C70
Communication Support
IP streaming
With the new SRT protocol support, the EOS C80 simplifies live streaming for news programmes and video websites, making it a highly efficient tool for real-time broadcasting.
This feature seamlessly integrates into existing video production and editing workflows at broadcasters and other platforms, significantly enhancing their streaming capabilities.
Virtual Production Support
The EOS C80 with RF mount system supports virtual production, offering high-speed communication for real-time metadata output. This simplifies video composition and provides continuous correction data linked with zoom for seamless integration of camera footage and CG.
Additionally, it includes a plugin for Unreal Engine and Adobe After Effects, enabling easy import of movie file metadata for accurate and efficient compositing in virtual production workflows.
EOS VR System Support
The EOS C80 allows 180° VR shooting with the RF5.2mm F2.8 L DUAL FISHEYE lens. This technique simplifies VR production by recording with a single sensor, eliminating left/right synchronisation and post-shoot stitching.
Canon offers the EOS VR Utility with Adobe Premiere Pro plugin to improve workflow. These tools enable converting, editing, and producing VR content straightforward, ensuring a smooth shooting to production experience.
Multi-Function Shoe
Sporting a next-generation interface with high-speed communication interface, the Multi-Function Shoe supports various types of accessories by using power supply from the camera. The EOS C80 has two Multi-Function Shoe, one on the main body and another on the handle unit.
XLR Microphone Adapter
Directional Stereo Microphone
Off-camera Shoe Cord
Discover the EOS C80
Specifications
| Lens Mount | RF Mount | Lens | No | |
| Sensor | 35mm full-frame CMOS sensor | SDI Out | Yes (BNC terminal x1, 12G/6G/3G/HD-SDI) | |
| Number of Pixels | Total pixels: approx. 26.7 megapixels Effective pixels: up to approx. 19.0 megapixels |
MON. | No | |
| ISO Sensitivity | 160-25600 (Extended: 100-102400) | HDMI | Yes (Type-A) | |
| BASE ISO | 800 / 3200 / 12800 / Auto-change (Ex.: Canon Log 2, Canon Log 3, RAW recording) |
Audio Input | Mini-XLR x2 (AES/EBU not supported) | |
| Sensor Mode | Full-frame, Super 35mm Crop | Ethernet | Yes | |
| ND filter | Mechanical ND filter (2 / 4 / 6 / 8* / 10 stops*）*With extender | USB | Yes (USB Type-C) [HOST not supported/no power supply] | |
| Gamma | Canon Log 2, Canon Log 3, Canon 709, BT.709 Wide DR, BT.709 Standard, PQ, HLG | VIDEO | No | |
| Frame Rate | 6K 29.97P/25.00P (RAW) [internal recording] 4.3K 59.94P/50.00P (RAW) [internal recording] 4K 59.94P/50.00P (XF-AVC/XF-HEVC S/XF-AVC S) 2K 59.94P/50.00P (XF-AVC/XF-HEVC S/XF-AVC S) |
GRIP | No | |
| Color Space | Cinema Gamut, BT.2020 Gamut, BT.709 Gamut | MIC | Yes (Φ3.5mm stereo mini jack) | |
| White Balance | Auto, sunlight, tungsten, color temperature (2000K to 15000K), settings A/B | Headphone | Yes (stereo) | |
| Dynamic Range | 16 stops | REMOTE A (φ2.5mm) | Yes (REMOTE terminal) | |
| AF | Dual Pixel CMOS AF II | REMOTE B (RS- 422) | No | |
| Recording format | Movies | Cinema RAW Light XF-AVC XF-HEVC S XF-AVC S |
TC (TIME CODE) | Yes (BNC terminal) [doubles as input/output] |
| Photos | JPEG | G-LOCK | No | |
| Maximum frame rate* (slow & fast, etc.) *When frame rate exceeds 100P in Super 35mm mode, the angle of view is cropped at approx. 6%. |
Full-frame: 6000x3164/30P, 4096x2160/120P. 2048x1080/180P Super35mm Crop: 4368x2304/60P, 4096x2160/120P, 2048x1080/120P |
SYNC | No | |
| Recording Format (audio) | Linear PCM 24-bit/48kHz/4ch AAC 16-bit/48kHz/2ch (XF-HEVC S / XF-AVC S) |
RET | No | |
| Recording Media | SD Cards (2 slots) | DC-IN 12V | Yes (round pin jack x1) | |
| LCD Monitor | 3.5-inch LCD 2.76 million dots, high brightness touch panel | Battery | BP-A30N (BP-A60N, BP-A30, BP-A60 - optional) |
|
| Viewfinder | No | AC Adapter | CA-CP300B | |
| Level | Yes (Roll / Tilt) | Operating Temperature |
Guaranteed performance conditions: Approx. 0 ℃ to 40 ℃ 85％ (relative humidity) |
|
| Multi-Function Shoe (21 pin) | Yes (with power contacts) | Dimensions (W x H x D) | Approx. 160 x 137.4 x 116mm | |
| Wi-Fi | Yes (Internal) | Main Body Weight | Approx. 1300 g | |
*1 Has USB Type-C shape, but USB functionality is not available.
*2 One DIN terminal is used for the G-LOCK/SYNC/RET terminal. Function can be switched from the menu.
*Note: All photos and visuals are simulated
