NOTE
Clarifications of the operation and additional explanations for the procedure are indicated at the end of this page. Reading these notes is highly recommended.
1. Display the [Document Properties] dialog box.
For Windows 98/Me: Display the [Document Properties] dialog box or the [Printer Properties] dialog box.

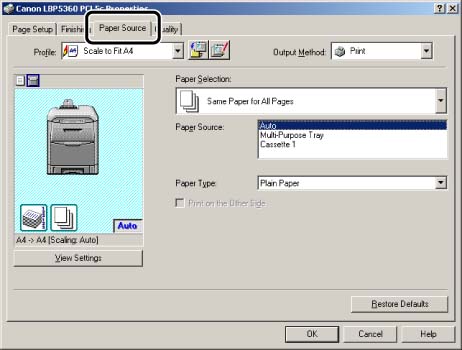

2. Display the [Paper Source] sheet.

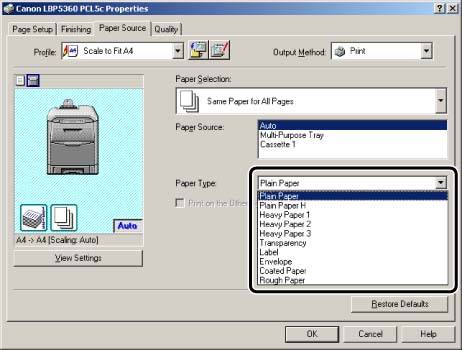

3. Select the paper type specified in [Paper Type].
NOTE
Load paper in the paper cassette based on the following [Paper Type] criteria.
| Paper Type | Printer Driver Setting |
| Plain paper (60 - 105 g/m2) | [PLAIN PAPER] |
| [PLAIN PAPER H] *1 |
| [ROUGH PAPER] *2 |
NOTE
*1 Specify when you want to give a gloss to plain paper (75 to 105 g/m2) to be printed.
*2 Specify when a paper jam occurs or when you want to improve the fixation on printing coarse paper (75 to 105 g/m2) with PLAIN PAPER selected.
NOTE
Load paper in the multi-purpose tray based on the following [Paper Type] criteria.
| Paper Type | Printer Driver Setting |
| Plain paper (60 - 105 g/m2) | [PLAIN PAPER] |
| [PLAIN PAPER H] *1 |
| [ROUGH PAPER] *2 |
| Heavy paper | 106 - 120g/m2 | [HEAVY PAPER 1] |
| 121 - 176g/m2 | [HEAVY PAPER 2] |
| 177 - 220g/m2 *3 | [HEAVY PAPER 3] |
| Transparencies (Black and white printing only) | [TRANSPARENCIES] |
|
| Coated paper (105 - 120 g/m2) | [COATED PAPER] *4 |
|
| Labels | [LABEL] |
| Envelopes | *5 |
NOTE
*1 Specify when you want to give a gloss to plain paper (75 to 105 g/m2) to be printed.
*2 Specify when a paper jam occurs or when you want to improve the fixation on printing coarse paper (75 to 105 g/m2) with PLAIN PAPER selected.
*3 It is not recommended to print on heavy paper that weighs between 177 and 220 g/m2. However, specify HEAVY PAPER 3 if you have to perform printing.
*4 When printing coated paper of 121 to 160 g/m2, set TRAY PAPER TYPE to COATED PAPER, and then set COATED PAPER in SP.PRINT MODE in the USER MAIN. options to ON.
*5 When printing envelopes, the printer automatically applies the appropriate print mode to the envelope type by specifying [Output Size] in the [Page Setup] sheet.
4. Confirm the settings, then click [OK].
NOTE
a. The screen shots used in this section are from Windows 2000 on which PCL 5c Printer Driver is used.
b. If you display the [Document Properties] dialog box from an application, you can specify the settings only for the job.
c. If you display the [Document Properties] dialog box from the [Printers and Faxes] folder or [Printers] folder (Windows 2000/XP/Server 2003); or if you display the [Printer Properties] dialog box from the [Printers] folder (Windows 98/Me), you can specify the default settings for all jobs.
d. For displaying the [Document Properties] dialog box or [Printer Properties] dialog box, see Related Information at the end of this page.
